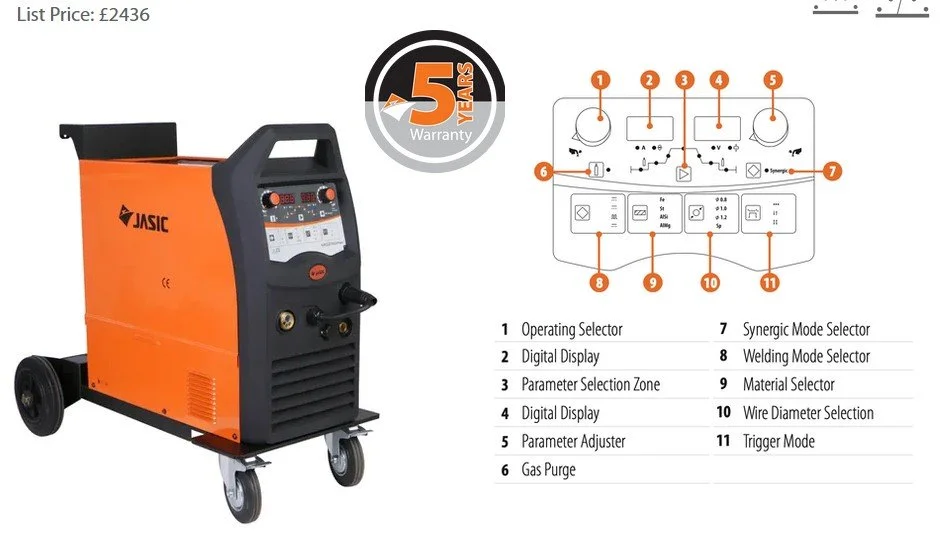

250 AMP MIG MMA TIG Pulse Inverter Welder Jasic JM-250P 230v
A MIG welder which can also stick and TIG Weld
Includes: Welder, MIG Torch, Work return lead and clamp, gas hose and regulator
Outstanding 5 year manufacturers warranty
The Jasic MIG 250 pulse inverter compact MIG welder is a great solution for those looking for a machine that will MIG weld mild steel, stainless steel & aluminium. The JM-250P will produce great quality welds due to its pulse feature and ease of use. Its maximum weldable thickness is 10MM mild steel and stainless steel and up to 6MM on aluminium. Jasic 250 pulse MIG can be used in a wide variety of industries including sign making, general fabrication, ship building, sculpting & many more. Its 10MM welding capacity covers light and medium fabrication capacity. The main feature on this machine is pulse MIG; pulse MIG allows for easier welding of aluminium and stainless steel in particular. If used in conjunction with the correct gas (pure argon) the JM-250P will produce excellent, aesthetically pleasing welds on aluminium up to 6MM thick. Other benefits of pulse includes faster travel speed, less spatter & ease of welding.. usually aluminium MIG is not a particularly nice process but pulse makes it much easier. The machines 4 roll wire feeder makes for smooth feeding of softer wires such as 4043, 5356 or 1070; it also eliminates issues such as birds nesting and inconsistent feeding.Synergic control makes for easy parameter setting. Simply select your material type, wire diameter, material thickness and the machine does the work for you. This feature is great for those who have little to no experience with standard voltage/WFS MIG parameter setting.The multi process capabilities expand the machines applications immensely, with DC lift TIG you can TIG weld mild and stainless steel to a very nice standard. With arc/MMA you can weld materials up to 20MM thick such as I-beams or thick metal plate. Finally, the euro torch connector allows for easy maintenance or replacement of the MIG welding torch.In conclusion, the Jasic MIG 250 pulse is a great addition to the Jasic range & is a perfect option for anyone looking for a MIG welder that has many applications; especially those wanting to weld stainless steel & aluminium. Its price point is unmatched in the welding industry so is proving to be a very popular choice among welders
FEATURES:
Single Phase professional IGBT inverter
Pulse Mig
Synergic Control
4 Roller Wire Feeder
MIG/MAG and MMA welding processes
Advanced control circuitry
Digital Amps/Volts display
High duty cycle for increased productivity
Suitable for 0.6/0.8/1.0mm wires
Stable and reliable arc
Burn back control
Spool Gun interface
Wire inching featureTECHNICAL DATAInput Voltage AC: 230V - 50/60 Hz
Input Power (kVA): 9.13
Current Range (A): 40 -250
No-Load Voltage (V): 75
Duty Cycle: 40% @ 250A
Wire Spool Size: 15kg
Power Factor: 0.76
Dimensions (mm): 895 x 554 x 760
Weight (Kg): 49.7
